633 nm SLM Laser

Item Code: 0633L-23A-NI-AT-NF
VBG Diode SM fiber
Preliminary
Product specifications are subject to change, delivery time is less predictable.
Full production
Product specifications are stable. Delivery time is predictable.
Replacement in due course
The product is to be replaced. Please contact us regarding forseeable changes
Not for new designs
The product is to be discontinued. Please contact us for production plans.
Orders still accepted, deliveries still possible
The product will be discontinued soon but we still have some stock of finished items or neccessary components.
No more orders accepted
Some products might be reserved for in-warranty replacement and outstanding orders.
Discontinued
The product is no longer available. Please contact us regarding alternatives or custom solutions.
Available (in stock) Not in stock

Description

Single-longitudinal mode (SLM) 633 nm laser is a replacement for HeNe, where high coherence length and exact center wavelength is needed. This configuration provides a perfect diffraction-limited beam from an SM fiber. Small footprint and +5VDC (USB typical) operating voltage is exactly what's needed for handheld portable devices. Integrated precision driver electronics ensure low-noise and very stable operation throughout wide temperature range. 633 nm red radiation features average photon energy. VBG technology delivers a low-cost solution to sophisticated Raman spectroscopy and various metrology needs.

Note:
In optical systems with strong back-reflections (e.g. more than 10%), the laser must be protected by using an optical isolator with at least 20 dB isolation. Typical applications include interferometry, confocal microscopy (especially working with reflective samples), etc. Failure to comply with these requirements will render the warranty void for cases of COD (Catastrophic Optical Damage) of laser diode facets.

Fiber Termination - FC/APC (AT): 8° polishing angle minimizes back reflections from fiber tip. This is necessary especially for SLM lasers.

Last edited on: 24 January 2024
Parameter Minimum Value Typical Value Maximum Value
 Central wavelength, nm 632.6 632.8 632.9
 Longitudinal modes - Single -
 Spectral line width FWHM, MHz 1 - 2 8
 Output power, mW 2 - 35 -
 Side-mode suppression ratio (SMSR), dB - 50 -
 Power stability, % (RMS, 8 hrs) 3 0.03 0.1 0.25
 Power stability, % (peak-to-peak, 8 hrs) 4 0.1 0.4 1
 Intensity noise, % (RMS, 20 Hz to 20 MHz) 5 0.1 0.1 0.6
 Control interface type 6 - UART -
 Operation mode - APC (CW) -
 Modulation bandwidth, MHz 7 - N/A -
 Input voltage, VDC 4.8 5 5.3
 External power supply requirement - +5 V DC, 1.5 A -
 Dimensions (WxDxH), mm 8 - 50 x 30 x 18 -
 Fiber length, m 0.95 1 1.1
 Heat-sinking requirement, °C/W - 1 -
 Optimum heatsink temperature, °C 18 25 32
 Warm up time, mins (cold start) 0.2 1 2
 Temperature stabilization - Internal TEC -
 Overheat protection - Yes -
 Storage temperature, °C (non-condensing) -10 - 50
 Net weight, kg 0.1 0.12 0.14
 Max. power consumption, W 0.4 2 10
 Warranty, months (op. hrs) 9 - 14 (10000) -
 RoHS - Yes -
 CE compliance - - General Product Safety Directive (GPSD) 2001/95/EC
- (EMC) Directive 2004/108/EC
-
 Laser safety class - 3B -
 OEM lasers are not compliant with - IEC60825-1:2014 (compliant using additional accessories) -
 Country of origin - Lithuania -
 Spectral line width FWHM, pm 10 - 0.003 0.01

1 Measured using HighFinesse LineWidth Analyzer LWA-10k having 10 kHz resolution. Linewidth Analyzer testing is not provided for each laser being manufactured, the standard test is OSA measurement with 20-30 pm resolution instead.

2 The output power of SLM lasers shall not be tuned and SLM performance is not guaranteed at power ratings other than factory preset. However, the power setting capability is not disabled. External attenuators are recommended instead.

3 The long term power test is carried out at constant laser body temperature (+/-0.1 ‎°C) using an optical power meter with an input bandwidth of 10 Hz. The actual measurement rate has a period of about 20 seconds to 1 minute.

4 The long term power test is carried out at constant laser body temperature (+/-0.1 ‎°C) using an optical power meter with an input bandwidth of 10 Hz. The actual measurement rate has a period of about 20 seconds to 1 minute.

5 Noise level is measured with a fast photodiode connected to an oscilloscope. The overall system bandwidth is from 2 kHz to 20 MHz.

6 Break-out-boxes AM-C8 and AM-C3 can be used for conversion of UART communication to either USB or RS232.

7 SLM lasers shall not be modulated - use external modulators instead.

8 Excluding control interface pins and an output window/fiber assembly.

9 Whichever occurs first. The laser has an integrated operational hours counter.

10 Converted from bandwidth value.

Typical spectrum

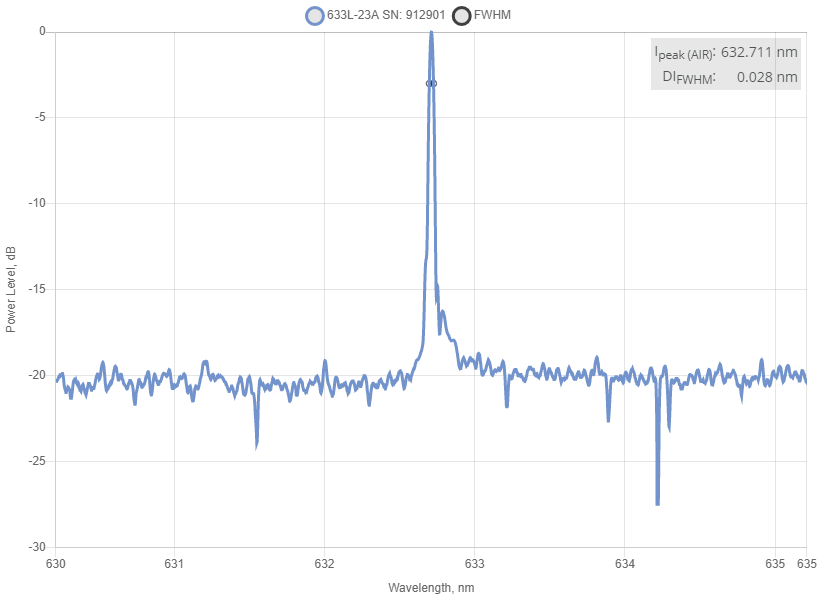

Typical spectrum of 0633 nm diode laser. Measured with 20 pm resolution.

Spectrum of 633 nm SLM Laser
Drawing

The key dimensions of a fiber-coupled MatchBox.

Drawing of 633 nm SLM Laser
Typical Near Field

Near field beam profile of 633 nm SLM Laser
