783 nm SLM Laser (VBG Diode; PM Fiber)

Item Code:
0783L-25A-NI-AT-NF
Product status:
Full production Product specifications are stable. Delivery time is predictable.
Availability:

Description
783 nm SLM laser is designed for Shifted Excitation Raman Difference Spectroscopy (SERDS). This laser is used together with a 785 nm as a matched pair of identical excitation sources having central wavelength peaks separated by 2 nm apart. This separation is quite universal and suitable for most spectrometers. It is recommended to combine the two laser beams into a single optical path using a polarizer and then apply the laser lens clean-up filter. Another approach is to use Volume Bragg Grating based filters for coupling the beams together and cleaning-up the lines at the same time.
Specifications
Last edited on:  14 November 2019
Parameter Minimum Value Typical Value Maximum Value
 Central Wavelength, nm 782.9 783 783.1
 Longitudinal modes - Single -
 Spectral line width FWHM, pm - 0.1 1 1
 Output power, mW - 70 2 -
 Side-mode suppression ratio (SMSR), dB 40 50 60
 Power stability, % (RMS, 8 hrs) - 1 3 2
 Power stability, % (peak-to-peak, 8 hrs) - 2 4 2
 Noise, % (RMS, 20 Hz to 20 MHz) - 0.25 5 0.6
 Transversal modes - TEM00 -
 Polarization direction - Aligned within the slow axis of the PM fiber and the key position. -
 Polarization extinction ratio (from PM fiber), dB 20 23 30
 Control interface type - UART 6 -
 Operation mode - APC (CW) -
 Modulation bandwidth, MHz - N/A 7 -
 Input voltage, VDC 4.8 5 5.3
 External power supply requirement - +5 V DC, 1.5 A -
 Dimensions, mm - 50 x 30 x 18 8 -
 Fiber Length, m 0.95 1 1.1
 Heat-sinking requirement, °C/W - 1 -
 Optimum heatsink temperature, °C 15 20 30
 Warm up time, mins (cold start) 0.2 1 2
 Temperature stabilization - Internal TEC -
 Overheat protection - Yes -
 Storage temperature, °C (non-condensing) -10 - 50
 Net weight, kg 0.1 0.12 0.14
 Max. power consumption, W 0.4 2 10
 Warranty, months (op. hrs) - 14 (10000) 9 -
 RoHS - Yes -
 CE compliance - - General Product Safety Directive (GPSD) 2001/95/EC
- (EMC) Directive 2004/108/EC
-
 Laser Safety Class - 3B -
 OEM lasers are not compliant with - IEC60825-1:2014 (compliant using additional accessories) -
 Country of origin - Lithuania -
1 Measured with a scanning Fabry-Perot interferometer having 7.5 Mhz resolution, with scanning frequency of about 10 Hz. Interferometer testing is not provided for each laser being manufactured, the standard test is OSA measurement with 10-20 pm resolution instead.
2 The output power of SLM lasers shall not be tuned and SLM performance is not guaranteed at power ratings other than factory preset. However, the power setting capability is not disabled. External attenuators are recommended instead.
3 The long term power test is carried out at constant laser body temperature (+/-0.1 ‎°C) using an optical power meter with an input bandwidth of 10 Hz. The actual measurement rate has a period of about 20 seconds to 1 minute.
4 The long term power test is carried out at constant laser body temperature (+/-0.1 ‎°C) using an optical power meter with an input bandwidth of 10 Hz. The actual measurement rate has a period of about 20 seconds to 1 minute.
5 Noise level is measured with a fast photodiode connected to an oscilloscope. The overall system bandwidth is from 2 kHz to 20 MHz.
6 Break-out-boxes AM-C8 and AM-H10 can be used for conversion of UART communication to either USB or RS232.
7 SLM lasers shall not be modulated - use external modulators instead.
8 Excluding control interface pins and an output window/fiber assembly.
9 Whichever occurs first. The laser has an integrated operational hours counter.
Note: Product specifications are subject to change without prior notice to improve reliability, function or design or otherwise.
Typical spectrum

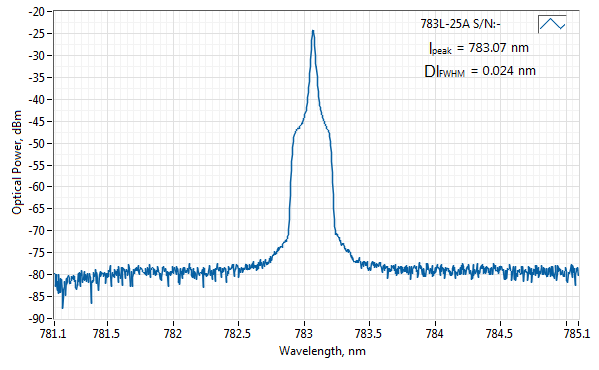

Spectrum of 783 nm SLM Laser (VBG Diode; PM Fiber)
Typical spectrum of 0783 nm diode laser. Measured with 20 pm resolution.
Typical Near Field

Near field beam profile of 783 nm SLM Laser (VBG Diode; PM Fiber)
Drawing

Drawing of 783 nm SLM Laser (VBG Diode; PM Fiber)
